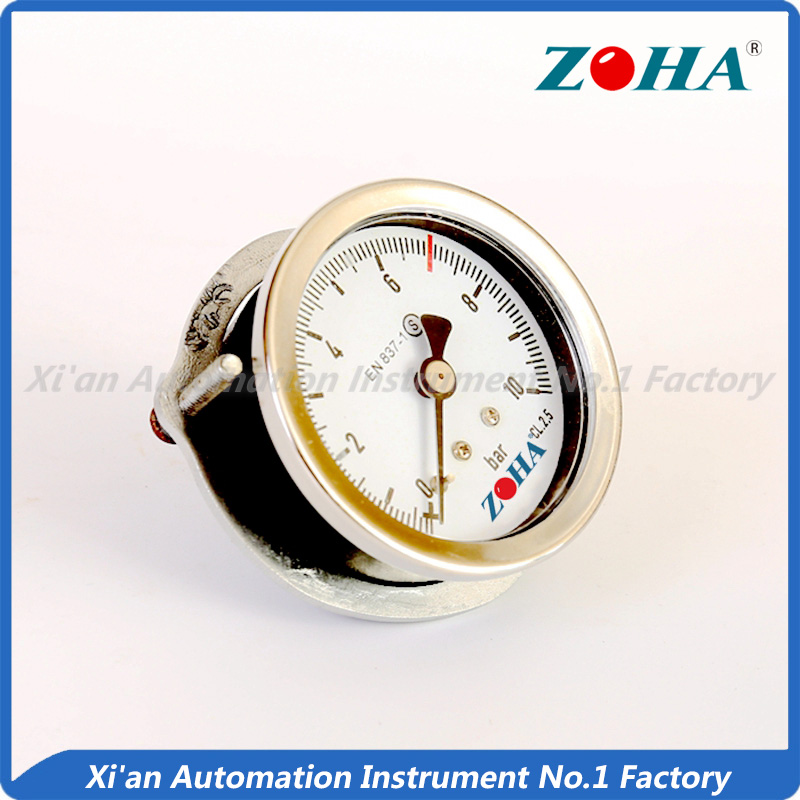

Back Mounting Type General Pressure Gauge With Annular Hose Connector

Product Categories

Xi'an Automation Instrument No.1 Factory

Contact Now

Name: Back Mounting Type General Pressure Gauge With Annular Hose Connector
Brand: ZOHA
Price: 1 USD

Brand Name : ZOHA

Model Number : 51 Y-50ZU

Certification : CE

Place of Origin : China

MOQ : negotiate

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 80000 pcs per month

Delivery Time : 3~4 weeks

Packaging Details : 1 pcs per box 100pcs per carton

Name : High pressure gauge

Dial Diameter : 50mm

Accuracy Class : ±2.5%

Bourdon Tube : Phosphor bronze

Connector : Brass

Pointer : Aluminum black

Contact Now

pressure gauge--Back Mounting with annular Hose connector

◎ Applications

The pressure gauge is well suited for measuring gases or liquids which will neither
explode, nor crystallize, nor corrode copper or copper alloys.

◎ Specifications

Model	Y-50ZU
Dial Diameter	50mm
Measuring Range	Between - 0.1~0~60MPa
Pressure Unit	Mpa psi bar kg/cm² etc. (single or double scale both available)
Accuracy Class	±2.5%
Case Material	Steel or Plastic
Movement	Brass with steel
Bourdon Tube	Phosphor bronze
Connector	Brass
Mounting Type	Back Mounting with annular hose connector
Pointer	Aluminum black
Over-pressure	30%
Environment Temp and Humidity	- 40~70°C ≤85%
Using Area	Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors,OEM

Back Mounting Type General Pressure Gauge With Annular Hose Connector
