Double Pointer Steam Pressure Gauge / Double Pipe Water Pressure Gauge

Name: Double Pointer Steam Pressure Gauge Double Pipe Water Pressure Gauge
Brand: ZOHA
Price: 1 USD

Quality Double Pointer Steam Pressure Gauge / Double Pipe Water Pressure Gauge wholesale

Brand Name : ZOHA

Model Number : YZS-102 series

Certification : CE

Place of Origin : China

MOQ : negotiate

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 80000 pcs per month

Delivery Time : 3~4 weeks

Packaging Details : 1 pcs per box 100pcs per carton

Name : Low pressure gauge

Dial Diameter : 50mm

Accuracy Class : ±2.5%

Bourdon Tube : Phosphor bronze

Connector : Brass

Pointer : Aluminum black

Contact Now

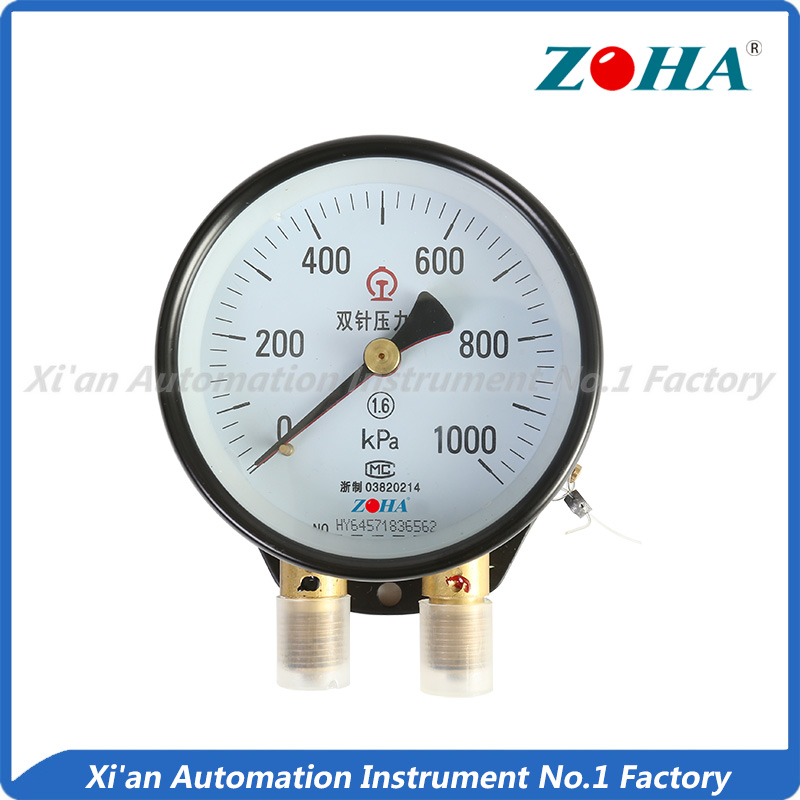

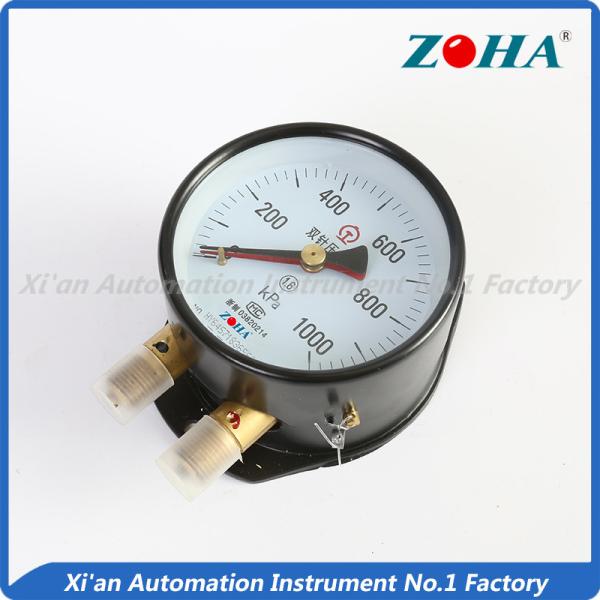

YZS-102 series double pointer double pipe pressure gauge

◎Application Description

This gauge mainly used in measuring the pressure of the liquid pressure system or the gas jar on the engine, also can measure two same pressure or two different pressure of the service medium at the same time which have none-corrosion, non-crystallized, non-solidified for copper alloys, lead-tin alloys welding materials.

◎Structure

This gauge is made up of two autocephalous measuring and pointing system. The gauges work base on flexibility parts (bourdon tube) change. It means that the media's pressure make the tube moving, with the stick and gear help, sending and making it bigger, then the pointer point it out on the dial.

◎Main Technology Data

◇ Accuracy:1.6.
◇ Scale range:0-1000;1200;1600;2500KPa.
◇ Environment condition:5℃~60℃, relative humidity is no more than 80%.
◇ Temperature influence: when the environment temperature deviate from 20±5℃ , the additional error is no more than 0.4%/10℃.
◇ Weight:0.7kg.
