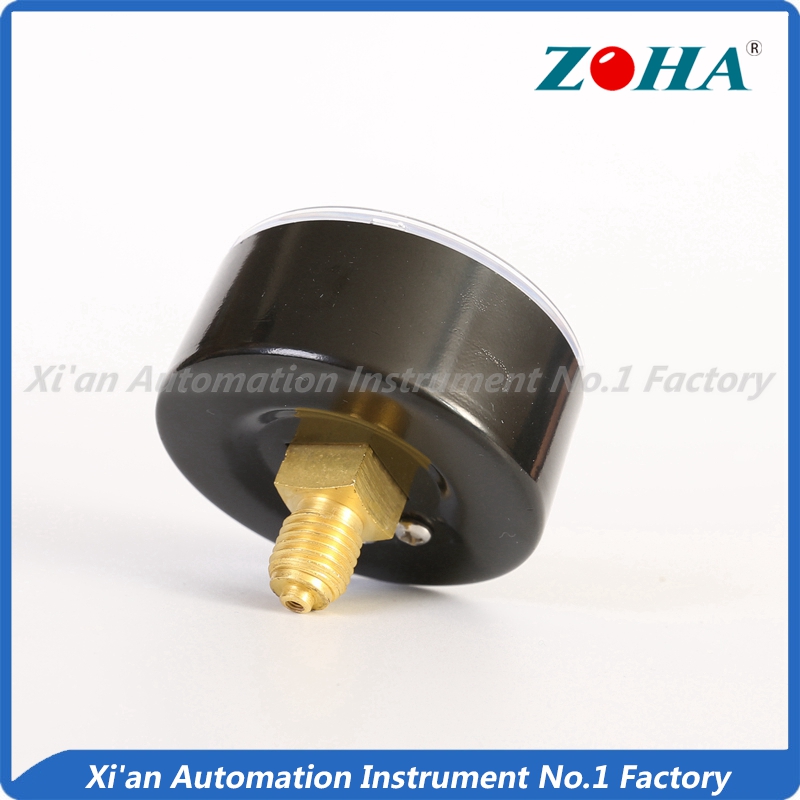

Back Connection General Pressure Gauge With Aluminum Black Pointer 63mm

Name: Back Connection General Pressure Gauge With Aluminum Black Pointer 63mm
Brand: ZOHA
Price: 1 USD

Quality Back Connection General Pressure Gauge With Aluminum Black Pointer 63mm wholesale

Brand Name : ZOHA

Model Number : Y60Z back

Certification : CE

Place of Origin : China

MOQ : negotiate

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 80000 pcs per month

Delivery Time : 3~4 weeks

Packaging Details : 1 pcs per box 100pcs per carton

Name : 63mm back connection general pressure gauge

Dial Diameter : 63mm

Accuracy Class : ±2.5% ±1.5%

Bourdon Tube : Brass

Mounting Type : Back

Pointer : Aluminum black

Contact Now

door pressure gauge

63mm back connection general pressure gauge

◎ Applications

The general pressure gauge is well suited for measuring gases or liquids which will neither explode, nor crystallize, nor corrode copper or copper alloys.

◎ Specifications

Dial Diameter	63mm
Measuring Range	Between - 0.1~0~60MPa
Pressure Unit	Kpa Mpa psi bar kg/cm² etc.
Accuracy Class	±2.5% ±1.5%
Case Material	Steel case
Movement	Brass with steel
Bourdon Tube	Phosphor bronze
Connector	Brass
Mounting Type	Back
Pointer	Aluminum black
Over-pressure	30%
Thread	M12*1.5 G1/4 NPT1/4 etc. (We can accept all kinds of thread from customers)
Environment Temp and Humidity	- 40~70°C ≤85%
Using Area	Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors,OEM
