Red Pointer General Pressure Gauge For Heating Bottom Connection 50mm/2 Inch

Name: Red Pointer General Pressure Gauge For Heating Bottom Connection 50mm2 Inch
Brand: ZOHA
Price: 1 USD

Quality Red Pointer General Pressure Gauge For Heating Bottom Connection 50mm/2 Inch wholesale

Brand Name : ZOHA

Model Number : Y50 red pointer

Certification : CE

Place of Origin : China

MOQ : negotiate

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 80000 pcs per month

Delivery Time : 3~4 weeks

Packaging Details : 1 pcs per box 100pcs per carton

Name : pressure temperature gauge

Dial Diameter : 50mm

Accuracy Class : ±2.5%

Bourdon Tube : Brass

Mounting Type : Back

Pointer : Aluminum black

Contact Now

pressure temperature gauge

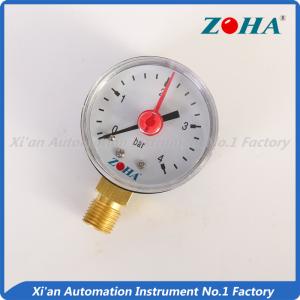

Bottom connection 50mm/2 inch general pressure gauge with red pointer

◎ Applications

The general pressure gauge is well suited for measuring gases or liquids which will neither explode, nor crystallize, nor corrode copper or copper alloys. It is with red pointer for special indication.

◎ Specifications

Dial Diameter	50mm
Measuring Range	Between - 0.1~0~40MPa
Pressure Unit	Mpa psi bar kg/cm² etc. (single or double scale both available)
Accuracy Class	±2.5%
Case Material	Steel case
Movement	Brass with steel
Bourdon Tube	Phosphor bronze
Connector	Brass
Mounting Type	Bottom
Pointer	Aluminum black
Over-pressure	30%
Thread	M12*1.5 G1/8 NPT1/8 G1/4 NPT1/4 etc. (We can accept all kinds of thread from customers)
Environment Temp and Humidity	- 40~70°C ≤85%
Using Area	Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors,OEM
